BM Preview Generation

Overview

In the BM Editor, a preview is generated upon clicking the preview button, but only after all peers have been processed. The preview displays approved data for all peers.

A new preview is generated in two scenarios:

1. When a fresh template is published.
2. If the last preview was approved and any new peer is saved.

--------------------------------------------------------------------------------------------------------------------------------

Scenario 1: New Template Publication

When a new template is published, a new preview is generated through offline. Initially, all statuses are set to 101, and once processing is complete, they are updated to 100.

BMOffline Processes

On Live, there are three BMOffline processes running:

• bm.offline-one
• bm.offline-two
• bm.offline-three

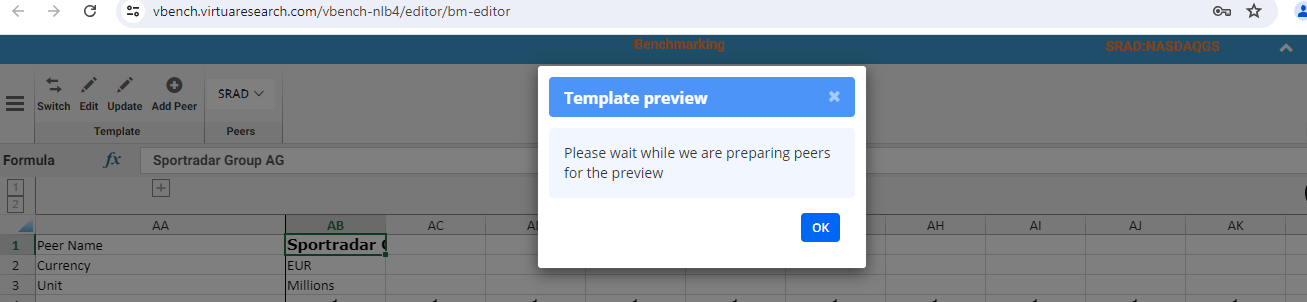

You will encounter the error message "Please wait while we are preparing peers for the preview" if the preview button is clicked before all peers are processed and their TemplateStatus is not 100.

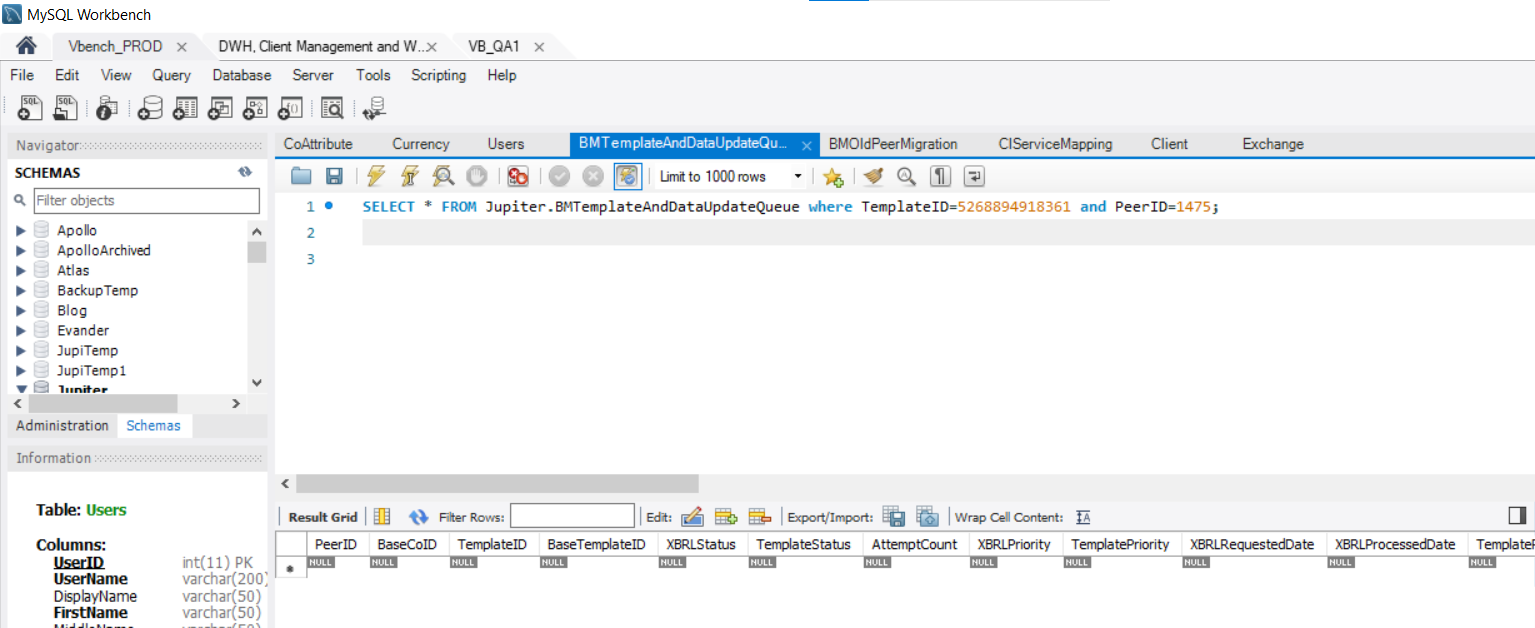

Query to Check Peer Processing Status

To check if all peers have been processed, use the following SQL query:

SELECT * FROM Jupiter.BMTemplateAndDataUpdateQueue

WHERE TemplateID = LatestTemplateID AND TemplateStatus = 100;

Scenario 2: Peer Save After Last Preview Approval

If the last preview was approved and a new peer is saved, the new preview is generated through a migration script. The status of all peers in the peer migration table should be 1 before the new preview can be loaded.

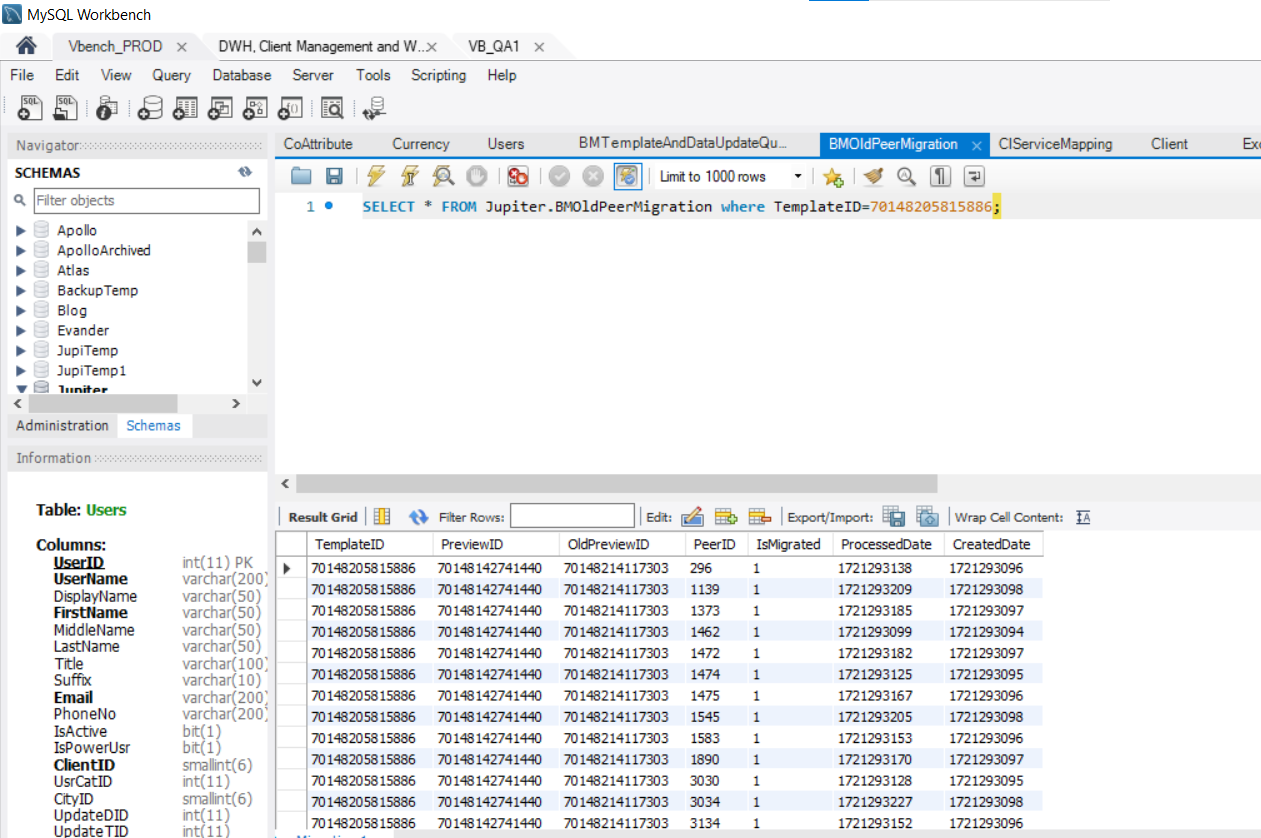

Query to Check Peer Migration Status

To verify if all peers are processed, use this SQL query:

SELECT * FROM Jupiter.BMOldPeerMigration

WHERE TemplateID = TemplateID;

----------------------------------------------------------------------------------------------------------------------------------------------

Checks to Resolve Preview Generation Issues:

1. If a Peer is Stuck in Status 102:
   • Try loading the peer on the frontend (BM Editor).
2. If Loading from the Frontend Does Not Work:
   • Reset the peer and wait for the process to pick up the peer.
3. If the Peer Still Does Not Load:
   • Reset the peer and load it from the frontend (online), ensuring all BMOffline services are stopped.
   • For steps on stopping BMOffline services, refer to this guide.
4. If Issues Persist:
   • Report the issue if the above steps do not resolve the problem.

Written by: Shivani Zinjurke

Date: 05/August/2024
